Name: EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40
Brand: RT
SKU: Blind Flange
Price: 1.00 USD
Availability: InStock
Rating: 5 (130 reviews)

Home Products Steel Blind Flange

EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40

Product Details:

Place of Origin:	Hebei,China
Brand Name:	RT
Certification:	CE,ISO,BV,SGS etc
Model Number:	Blind Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1ton
Price:	Negotiable
Packaging Details:	By Wooden Case or Pallets or as customer's request
Delivery Time:	7-30 working days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	600tons/per month

Contact Now

Detailed Product Description

Type:	WN,SO,BL,SW,TH,PL	Standard:	ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME
Pressure:	Class150/300/600/9001500/2500	Size:	1/2''-48''
Surface:	Anti-rust Oil, Clear Lacquer, Black Lacquer, Yellow Lacquer,hot-dipped Galvanized,electrical Galvanized	Usage:	Water Works, Shipbuilding Industry, Petrochemical & Gas Industry
Packing:	Wooden Boxes Package	Face Type:	FF, RF, LJ, RTJ, TG.
Technical:	Forged, Casting	Heat Treatment:	Normalizing, Annealing, Quenching Tempering
High Light:	EN1092-1 Blind Flange Raised Face , DN200 Blind Flange Raised Face , WNRF Flange Class 300

EN1092-1 TYPE05 forged PN6 PN10 PN16 PN25 PN40carbon steel DN200 blind flange

Description:

EN1092-1 TYPE05 forged PN6 PN10 PN16 PN25 PN40carbon steel DN200 blind flange is also called blind plate, and the correct name is called flange cover. It is a flange without a hole in the middle for sealing the pipe plug. There are many types of sealing surfaces, including FF, RF, RTJ, RJ connection surfaces.

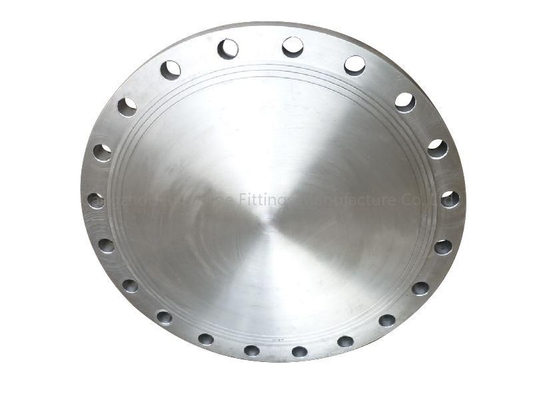

EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40 0

Main Products:

* Weld neck flange
* Flat flange
* Sliding flange
* Blind flange

Specifications:

Material	Carbon Steel	ASTM A105, LF2, CL1 / CL2
		16MN,20#
	Stainless Steel	ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti
	Alloy Steel	ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc.
Standard	ANSI/ASME B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc.
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.
Surface	Transparent anti tust oil,yellow anti rust oil,black paint,or clients request
Package	Plastic film,wooden cases,wooden pallet or on customers'request

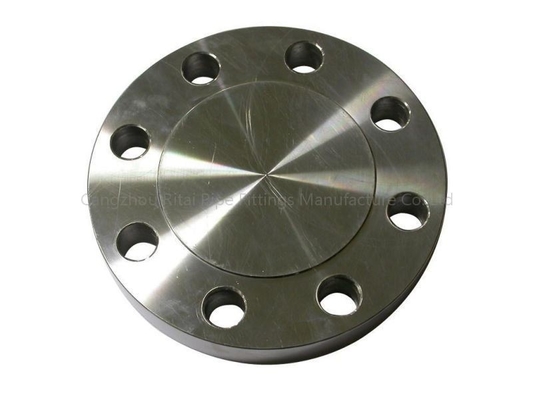

EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40 1

Classification of flange:

Plate type flat welded steel pipe flange

1. According to the chemical (Hg) industry standard, it can be divided into integral flange (if), threaded flange (th), plate flat welding flange (PL), neck butt welding flange (WN), neck flat welding flange (so), socket welding flange (SW), butt welding ring loose flange (PJ / SE), flat welding ring loose flange (PJ / RJ), lining flange cover (BL (s)), flange cover (BL) [2].

2. According to the petrochemical (SH) industry-standard: threaded flange (PT), butt welding flange (WN), flat welding flange (so), socket welding flange (SW), loose flange (LJ), flange cover (not indicated).

3. According to JB industry standard, it is divided into the integral flange, butt welding flange, flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, and flange cover.

4. According to the national (GB) standard: integral flange, threaded flange, butt welding flange, flat welding flange with neck, socket welding flange with neck, butt welding ring with neck loose flange, plate flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, flange cover.

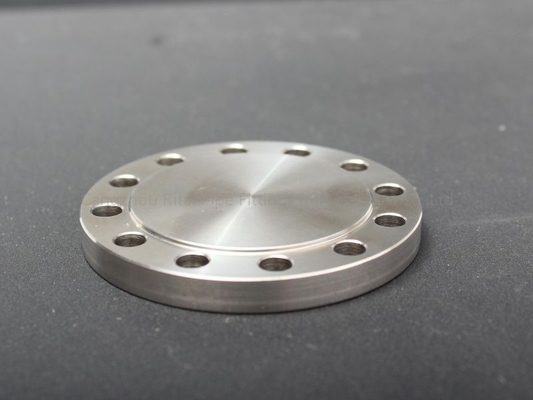

EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40 2

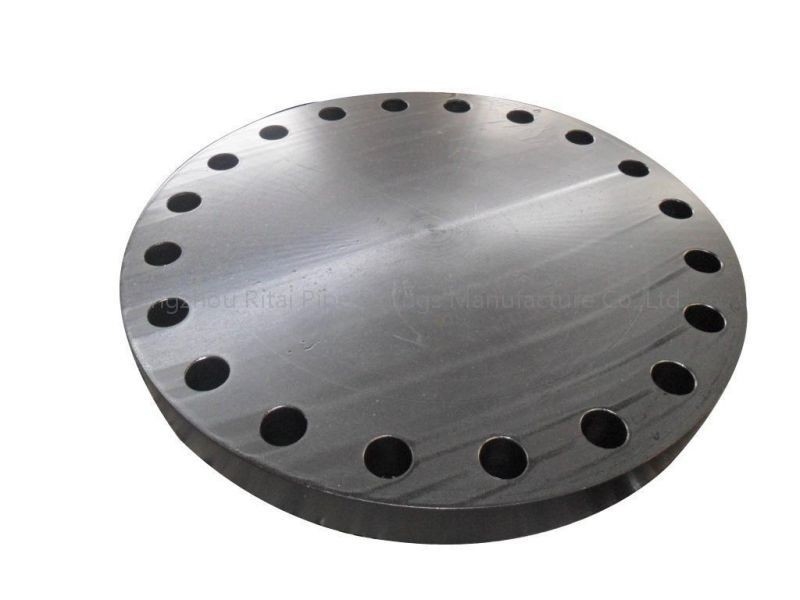

EN1092-1 WNRF Blind Flange Raised Face Class 300 DN200 TYPE05 Forged PN6 PN25 PN40 3

Q: What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as per your requirements.

Q: What are your terms of payment?
A: Payment<=1000 USD , 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
If you have another question, please contact us as below

Q: What about your price?
A: Our price is very competitive because we are a factory.
Pls, feel free to contact us if you are interested in our products.

Q: How long is your delivery time?
A: Different products have different delivery times. The products will be delivered as soon as possible on the basis of quality assurance. Usually, the delivery time is within 5 days after we received your deposit.
