| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001 |
| Model Number: | 5D Pipe Bends |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | plywood cases, pallets, nylon bags |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pieces/per month |
| Standard: | ANSI B16.9, ANSI B16.28 | Size: | 1/2" To 48" |
|---|---|---|---|
| Thickness: | Sch5-SchXXS | Material: | Carbon Steel |
| Connection: | Butt Welding | Technics: | Hot Forming, Push, Press, Forge, Cast, Etc. |
| Surface: | Hot Galvanized,varnished Coated,etc. | Application: | Petroleum Industry, Construction Industry And Other |
| Certificates: | API, ISO, BV, ASME | Transport Package: | Pallet, Wooden Case |
| High Light: | Sch 40 5D Pipe Bends,LR 5D Pipe Bends,BW Stainless Steel 90 Degree Elbow |
||

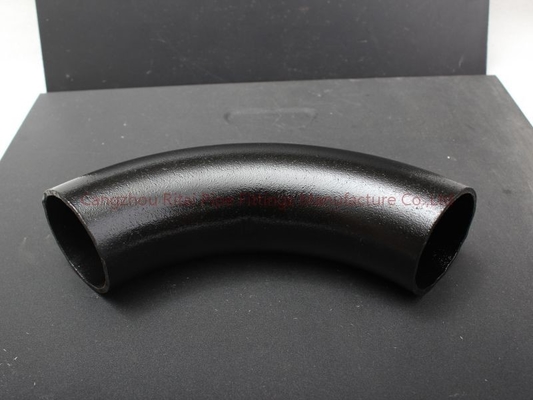

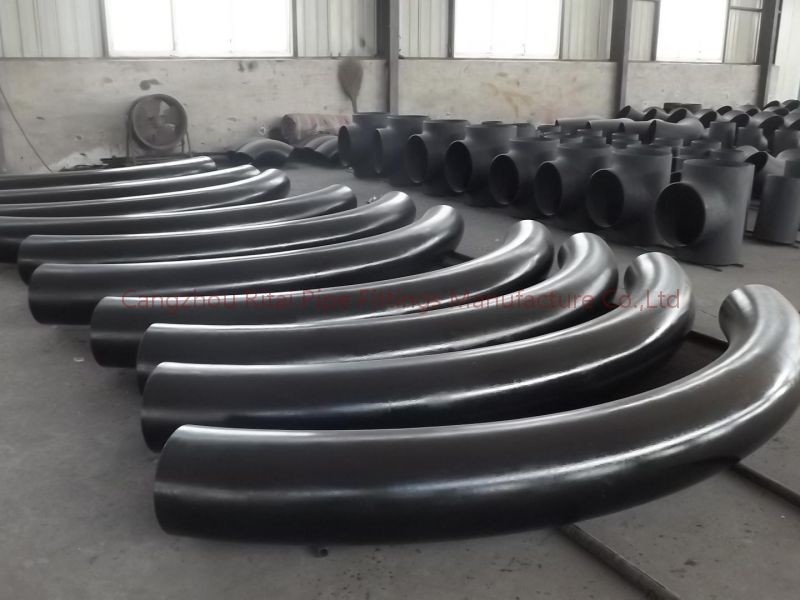

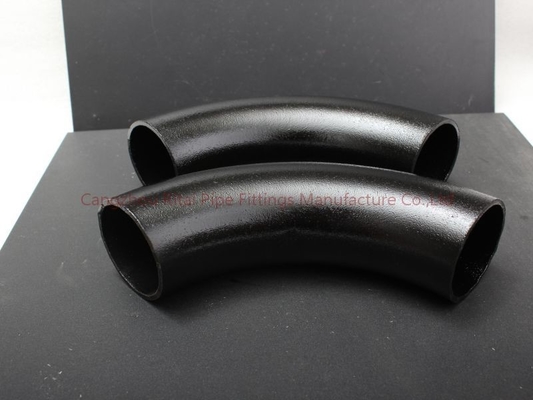

China API 5L Gr. B 5D Seamless Carbon Steel Bend Pipe, 5D Pipe Bend
Description:
What is China API 5L Gr. B 5D Seamless Carbon Steel Bend Pipe, 5D Pipe Bend?
Steel pipe bend is a bending pipe that used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend.
It is similar to pipe elbow, but differently, pipe bend is longer than elbow and usually manufactured for the specific needs.
Pipe bending radius: 3D bend, 5D bend, 6D, 8D and customized
Bending degree: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
Specifications:
| Material | carbon steel |
| Technique | welded, bending, forged, exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 48''/DN15-DN1200 |
| Angles | elbows,bend,tee,cross,reducers,cap,pipe, flanges,socket steel fittings,nipple |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS,BS,GB we can also produce according to drawing |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Min Order Quantity | According to customer's requirement |
| Types | 45 and 90° SR/LR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | API CCS ISO BV NB ASME |
| Special design available as requirement | |
FAQ:
Q1: How to order?
1.To specity standard and the thickness.
2.To specity surface treatment.
3.To specity figure size and quantity.
Q2: After sales service?
Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.
Q3:Do you offer guarantee for the products?
Yes,we offer almost 20 years warranty to our products.
Q4: Can you accept TPI?
A: Yes, sure. Welcome visit our factory and come here to inspect the goods and inspect production process.
Q5: Can you supply Form E, Certificate of origin?
A: Yes, we can supply.
Q6: Can you supply invoice and CO with chamber of commerce?
A: Yes, we can supply.
